QA Quantometer Turbine Flow Meter

QA Quantometers

The Ultimate in Compactness and Accuracy for the Industrial User

The Need for Metering

Energy efficiency is a key metric in almost every company today. The Honeywell Elster QA Quantometer offers the ultimate in compactness and accuracy to continuously monitor and control fuel and process gas consumption.

By knowing the exact consumption data, production and heating processes can be controlled more precisely and overall energy efficiency can be improved significantly. Data from quantometers is also used for internal cost allocation between cost centers.

Quantometers are highly reliable turbine gas meters, which are used in many industrial applications to determine the actual flow rate as well as consumption over a period of time fulfilling requirements of industrial, non-fiscal metering. Quantometers are used to meter the consumption of boilers, heaters, furnaces and other major consumers in any industrial or commercial plant.

Honeywell Logo

Advantages:

Z

Lightweight, aluminum construction reduces installation costs

Z

Low and high frequency pulse outputs allow remote instruments to be field retrofitted at a later date

Z

Permanently lubricated bearings eliminate regular maintenance

Z

Direct read odometer index reduces meter reading errors

Z

Rugged mechanical index rotatable through 360° accommodates any installation requirements

Z

Vertical or horizontal mounting suitable for burner train installations

Need help with sizing, design and training?

CR Wall has over 250 years of combined natural gas experience



Fields of Applications

Medium Natural gas, Air, Methane, Nitrogen, other non-corrosive gases


Verticals – Heavy and Light Industry, Petrochemicals, Steel, Power, Minerals, Heating


Function – In-plant Allocation Metering, Volume Input for Controls, Consumption Monitoring for Burners, Boilers, Furnaces etc.

Technical Data

Meter Sizes:  QA/e 10 – QA/e 1000

Flow Ranges:  1.6 – 1600 m3/h

Measurement Range:  Up to 1:20

Meter Size:  DN25 to DN150

Meter Body Material:  Aluminium

Temperature Range:  -10°C to +60°C

Protection Class:  IP52

Index:  7-digits

Approvals: DVGW, ATEX, PED

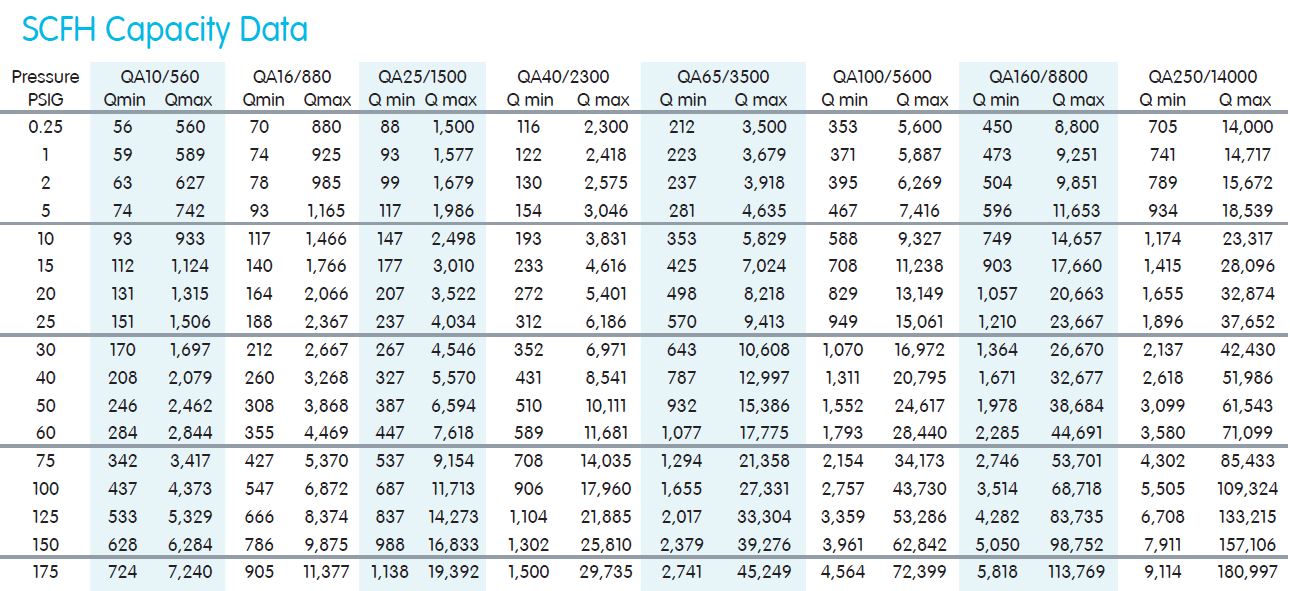

QA SCFH Capacity Data Table

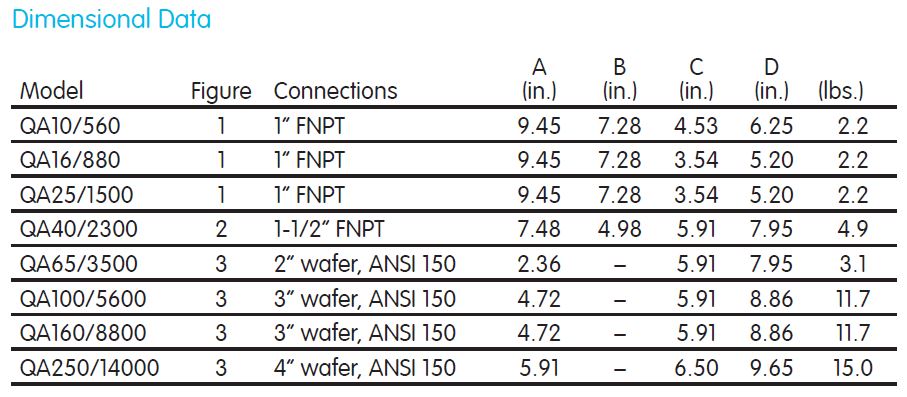

QA Dimensional Data Table

Have a member of our team reach out to answer your questions.  Contact us today.
