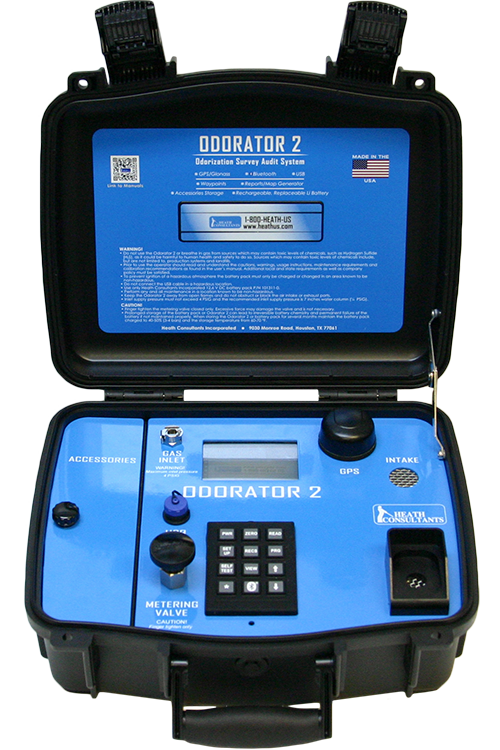

The latest innovation in odor level test instrumentation – ODORATOR 2

The ODORATOR 2 is Heath’s latest innovation in odor level test instrumentation. The Heath ODORATOR 2 offers the latest state-of-the-art technology in a handheld, portable, electronic, GNSS based audit system. This instrument is used to evaluate and record the odor levels within a utility’s gas stream with respect to actual test locations. Natural gas (methane) and propane are two common gases typically odorized and distributed for consumption. The ODORATOR 2 is an ideal tool for customer service personnel and other individuals testing odor levels in gas distribution or transmission systems.



Features

  • One touch zero with flow check
  • Automatic recording of all readings and locations
  • Automatic reading correction (linearity, elevation, pressure and temperature)
  • Dual GNSS constellations – GPS and GLONASS
  • Ease of integration with corporate GIS and asset management systems
  • Certified to Class 1, Div 2 for safe use in hazardous locations
  • Advanced PC software for mapping, report generation and management
  • Replaceable, rechargeable Li Ion battery pack for long run-time
  • USB 2 and Bluetooth connectivity
  • Rugged design, reliable and easy to use. The OdorSeer™ mapping software allows the user to evaluate reading

ODORATOR 2 Specifications

Technical Data
Value
Size
14 x 12 x 5” (35 x 30 x 8 cm)
Weight
9.5 lbs (4.3 kg)
Temperature Range
**0°F to 122°F (-18 to 50°C)
Datalogging
All readings with GNSS location, UTC time and date, instrument status and breadcrumb trail
Battery
Replaceable, rechargeable Li Ion battery pack for long run-time
Battery Life
Typically: 3 weeks
Charge Time
Typically: 6 hrs
Rating
IP55 (Protected from Dust & Water Jets)
Connectivity
USB 2.0 and Bluetooth
Recording Media
SDHC memory card; not accessible
Inlet Supply Pressure
7” water column, typical 4 p.s.i.g. maximum
Elevation Range
Sea level to 10,000 ft. (3,048 meters)
Compliance
GPTC (49 CFR Part 192 Subpart L192.625), ASTM D6273
EMI/EMC
US: FCC 47 CFR Part 15 Subpart B
Canada: Industry Canada ICES-003; Class A
European Union: EMC Directive 2004/108/EC utilizing EN 61326-1:2006 for Portable Test Measurement Equipment
Supplied with NRTL Listed cUL/ UL / CE marked power supply
Safety Certifications
UL61010-1/CSA C22.2 No. 61010-1
Safety requirements for electrical equipment for measurement, control, and laboratory use.
ANSI/ISA-12.12.01-2015 CAN/CSA C22.2 No. 213-15 Non-incendive Electrical Equipment for use in Class I and II, Division 2 hazardous locations
