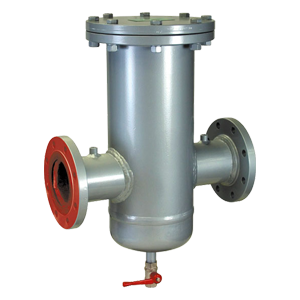

Protect your natural gas operation with the HFA Station Filters

The HFA Station Filters protect pressure regulators, valves, meters, etc. from solid particles present in natural gas. They are manufactured in different types and sizes in order to meet various plant needs. They are equipped with nipples for the assembly of several accessories. The filters construction is robust and they may be easily installed and maintained.



HFA Station Filters Features

  • Compact Design
  • Easy Maintenance
  • Top Entry
  • Low Operation Cost
  • Wide Range of Applications

HFA Station Filters Specifications

Technical data
Value
Max Working Pressure
Up to 17.6 bar
Max Working Temperature
Up to 60°C
Collecting Capacity
Over 12% of total filter capacity with drain on bottom part
Flanging
ANSI 150 RF and PN 16 UNI/DIN
Connections
In-line HFA
