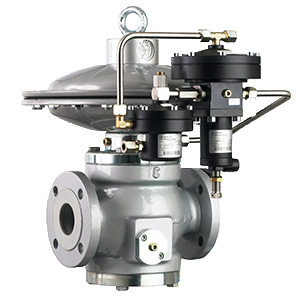

Accurate pressure control and easy maintenance with the Reval 182

The Reval 182 is a pilot-controlled pressure regulator for medium and low pressure applications. The Reval 182 is normally a fail to close regulator that will close under the following conditions:

  • breakage of main diaphragm
  • lack of gas feeding to the pilot loop

This regulator is suitable for use with previously filtered, non-corrosive gases.

The modular design of the Reval 182 pressure regulator allows retrofitting of an emergency monitor PM/182 or slam shut valve and/or silencer on the same body. The Reval 182 regulator is truly a “top entry design” which allows easy maintenance and/or retrofitting options in the field. The unique dynamic balancing system ensures an outstanding turn down ratio combined with an extremely accurate outlet pressure control.


Reval 182 Features

  • Compact design
  • Top Entry
  • Easy maintenance
  • Outstanding turn down ratio
  • High accuracy
  • Low operation cost
  • Low Noise

Reval 182 Pilot-Controlled Pressure Regulator Specifications

Technical data
Accuracy Class
Up to 2.5
Available Size DN
1″ – 2″ – 2″ 1/2 – 3″ – 4″ – 6″ – 8″ – 10″
Closing Pressure Class SG
Up to 5 (72 PSI)
Design Pressure
Up to 25 bar (362 PSI)
Design Temperature
-20° +60° C (higher or lower temperatures on demand)
ANSI 150 RF o RTJ according to ANSI B16.5 and PN16/25/40 according to ISO 7005
Maximum Working Differential Pressure
25 bar (362 PSI)
Minimum Working Differential Pressure
100 mbar (1.45 PSI)
Outlet Pressure Range of Wd
6 to 12000 mbar (0.09 to 174 PSI)
Range of Inlet Pressure bpu
0.2 to 25bar (2.9 to 362 PSI)
