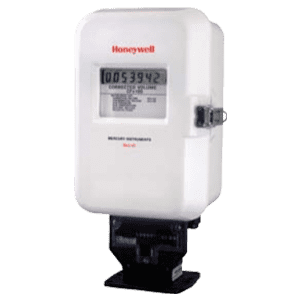

The Mini-AT’s proven track record for quality and reliability has set the standard for electronic gas volume correctors. With its purpose-designed case, precision measurement systems and abundant features, the Mini-AT provides the operation and service you expect from a Honeywell product.
The Mini-AT sets the quality and reliability standard
Mini-AT Electronic Volume Corrector Specifications
- Technical data
- Value
- Maximum error at reference conditions including linearity, repeatability and hysteresis
- Computation: ± 0.1% of corrected volume reading
- Pressure Transducer: ± 0.2% of full scale
- Temperature Sensor: ± 0.28°C (+/- 0.5°F)
- Combined Computation, Pressure & Temperature: ± 0.25% of full scale
- Ambient Temperature Effects from -40 to 76.6°C (-40 to 170°F)
- Computation ± 0.1% of corrected volume reading per 55.56°C (100°F)
- Pressure Transducer: ± 0.3% of full scale per 100°F
- Temperature Sensor: No effect
- Long Term Stability
- Computation: ± 0.1% of corrected volume reading per year
- Pressure Transducer: ± 0.3% of full scale per year
- Temperature Sensor: ± 0.11°C (0.2°F) per year
- Environmental Conditions
- Ambient temperature range: -40 to 76.6°C(-40° to 170°F)
- Ambient humidity: 0 to 100% non-condensing
- Power
- Input Voltage: 5.5 to 9.0 VDC
- Battery Life: 3 years (w/6 D-cell battery pack at normal operating conditions)
- Certifications
- Class 1, Division 1, Group D
- Class 1, Division 2, Group D
- Weight and Dimensions
- 12.5 lbs (5.6 kg) meter-mount version
- 14.5” H x 8.5” W x 7.3” D
